Features

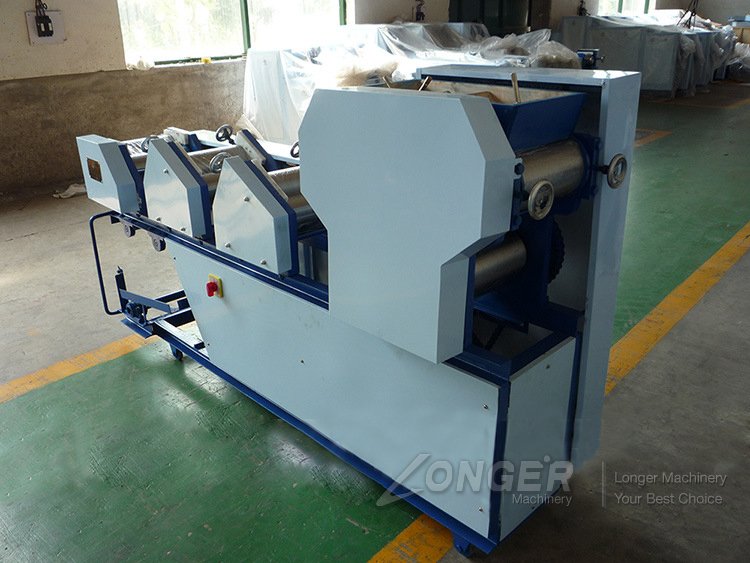

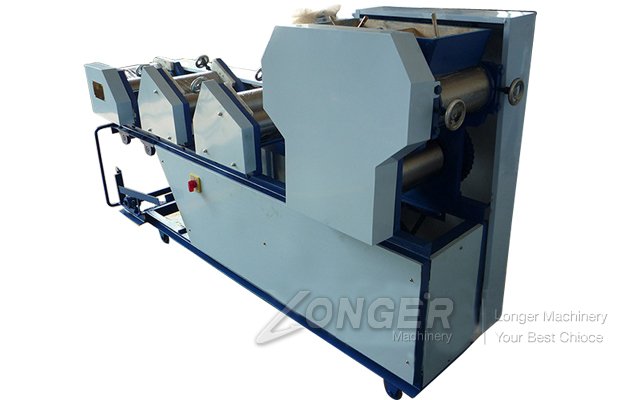

Automatic fresh noodle making machine can make different kind of noodle by changing mold, made of stainless steel. After mixing the dough in dough mixer machine, pour the mixed flour into hopper at the top of the wet noodle making machine, automatic feeding to coarse roll.
Thickness of dough sheet is adjusted by the handwheel, running deviation shows inconformity between two roller gap, should be adjusted on both ends of the handwheel, make it even. Precision roller smooth roll gap related to the gap and thickness of dough sheet, which can be adjusted according to local needs.
The machine adopts chain, sprocket drive, and drive parts for transmission structure, durable, equipped with additional automatic return leather equipment, which can reduce the labor intensity of operators and increase the efficiency.
Matters need attention :
1. Fastening parts, install flat and smooth.
2. Operators must wear sleeve clothes, can't put hand into the hopper.
3. You must clear away the hard stuff in the flour.
4. The oil does not take the place of cooking oil.
5. Machine clockwise, not allow reversing.
There are many types frseh noodles making machine: 5, 6, 7, 8, 9 rollers fresh noodles making machine, we can customize the machine according to your requirement.
Technical Data
Model | LG-15 | LG-25 | LG-50 |
Capacity | 15kg/time | 25kg/time | 50kg/time |
Power | 2.2kw | 4.0kw | 4.5kw |
Weight | 40kg | 130kg | 285kg |
Voltage | 220/380v | 220/380v | 220/380v |
Machine size | 650*350*720mm | 830*530*1150mm | 1100*540*880mm |
Type | LG-5-350 |
The width of Facets | 350mm |
The main roll size | 140*350mm |
Capacity | 350kg/h |
Power | 4KW |
Weight | 1200kg |
Dimension | 3200*780*1370mm |
EXW price | 2535USD |
Final product:Fresh noodle.three Noodles cutter knives for free |
