Features

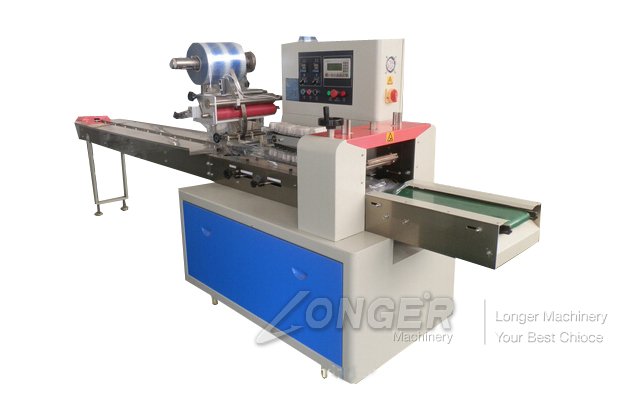

This automatic instant noodle packing machine is widely used in several fields, such as the food, pharmaceuticals, cosmetics, medical suppliers, industrial foods, rubber goods, hardware, etc.
1. Double frequency converter control (can choose servo motor),bag length is set is cut,don't need to adjust empty away,can solve all one time,to save time province membrane;
2. Man-machine interface, convenient and quick parameter setting;
3. Self diagnosis failure function,failure shows at a glance;
4. Digital input cut position,more accurate in the position of sealing and cutting;
5.Temperature independent PID control,better suited to a variety of packaging materials;
6.Positioning stop function, non-stick knives, do not waste envelope;
7. The transmission system is concise,more reliable,more convenient maintenance;
8. All controlled by the software implementation, convenient function adjustment and technology upgrade, keep advanced.
9. This machine can be made to be packing film go down way and do upper way.
To pack material without viscosity and with hardness, the packing film go upper way will be more suitable for this. If the packing material with high viscosity and soft, like Rice Cake, Towel, the packing film go down way will be more suitable for this kind of material.
Advantage:
1. Adjustable bags former to adjust the bag width as per request.
2. Motorized film feeding roller ensure the film running in the tension state.
3. Heavy duty steel fabricated base designed for high production stability.
4. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
5. Simple driving system, reliable working, convenient maintenance.
6. All the controls are achieved by software, convenient for function adjusting and upgrading.
7. It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.
8. Dual frequency conversion, Bag length can be set and cut in one step, saving time and film.
Technical Data
| (Model) | LG-280 |
| Width Of Packing Film | Max.280mm |
| Length Of Bags | 90- or 150-330mm |
| Width Of Bag | 50-140mm |
| Product Height | Max.40mm |
| Film Roll Diameter | Max.280mm |
| Packaging Speed | 50-250bag/min |
| Voltage Specification | 220V/50HZ |
| Power Source Specification | 2.5kw |
| Machine Dimensions | (L)4000×(W)950×(H)1450mm |
| Machine Weight | 650Kg |
| Note | Can match inflatable,code device |
FAQ
1. How can i ensure the machine i received is undamaged?
→ Before delivering the goods, we will send you the pictures of the product and the package. Before signing in, make sure the pakage is undamaged. If any question happens, pls contact me as soon as possible.
2. I want ro make an order, which kind of payment mode will your conpany accept?
→T/T, Western Union, L/C, and Money Gram.
3. What should I do if i meet trouble while using?
→Don't worry about it. If there is any question, pls contact us as soon as possible. Our professional engineers will solve the problem for you. Just let us know your problem.
4. If i order this machine from you, when will you deliver this machine for me?
→After you make the payment, we usually deliver the machine within 7 working days.
